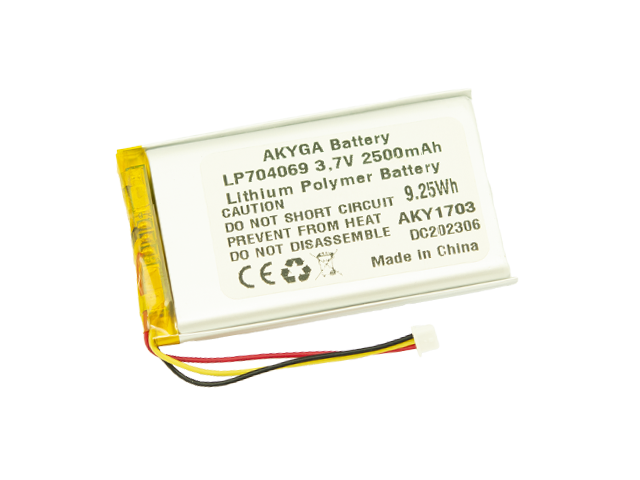

Ropla Elektronik Sp. z o.o. | Stock | Akyga battery - LP704069 - Lithium Polymer Battery 3.7V/2500mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=50mm

Lithium Polymer Battery 3.7V/2500mAh, PCM+NTC, connector 1.25 Molex, 3 pins, L=50mm


	Index Ropla	AKY1703
	Manufacturer's part number	LP704069
	Manufacturer	Akyga battery
	Data sheet	aky1703.pdf (921,62KB)

Lithium-polymer battery with a safety PCM circuit and connector

● High current efficiency
● No memory effect
● Very high discharge current
● Good value of the dimensions and capacity of the cell
● High flexibility in the design of shapes and sizes.
● High-quality safety PCM circuit, controls processes of charging and discharging
● Easy to install - with a leads in the form of wires and special connector
● No electrolyte, carbon materials. Batteries environmentally friendly
● Slow spontaneous discharge cells
● Application, among others, mobile devices: cameras and digital cameras, PDAs,
mobile phones, multimedia players. Used as a power source in model, eg. Remote-controlled planes and helicopters.
Very popular in logistics systems GPS and medicine.

RoHS	akyga_rohs_certificate_lipo.pdf (1,01MB) product compliant with the RoHS Directive
REACH	akyga_reach_test_report_lipo.pdf (840,57KB)
CE	akyga_ce_test_report_lipo.pdf (873,43KB)
MSDS	akyga_msds_lipo_batteries.pdf (296,56KB)

Product group	Rechargeable Batteries
Manufacturer	Akyga battery
Rechargeable Battery Type	Li-Po
Package/Case	7.0x41x68
Thickness	7.0mm
Width	41mm
High	68mm
Rated Voltage	3.7V
Capacitance	2500mAh
Protection	PCM+NTC
Leads	connector
Wires	50mm
Connector type	Molex 51021-3P
Pins	3
Lead Spacing	1.25mm
Nominal Charge Current	0.2C
Nominal Discharge Current	0.2C
Max Charge Current	1C
Max Discharge Current	1C
NTC	10kR
Tₘᵢₙ	-10°C
Tₘₐₓ	60°C
Packaging	Tray

Collective package	-/12/- pcs
Weight	39.100000 g
Weight of the collective package	-/469 g/-
Customs number	85078000
