7.5W ±12V/±310mA Isolated DC/DC Converter, 9-18Vin, n=80%, Viso=1500VDC

Index Ropla CIN0030
Manufacturer's part number EC3B04
Manufacturer Cincon
Data sheet /cin/ec3b.pdf ec3b.pdf (259,57KB)
Product group DC/DC Converters
Manufacturer Cincon
Number of Outputs 2
Power 7.5W
Series EC3B
Output Voltage 1 12V
Output Current 1 310mA
Input Voltage 9.0V ~ 18V
Isolation Voltage 1500VDC
Output Voltage 2 -12V
Output Current 2 310mA
Efficiency 80%
Ripple/Noise 1% p-p
Type Isolated
Package/Case B
Mounting Style THT
Tₘᵢₙ -25°C
Tₘₐₓ 71°C
Packaging Tube
Collective package -/12/84 pcs
Weight 35.000000 g
Weight of the collective package -/420 g/2,940 g
Customs number 85423990

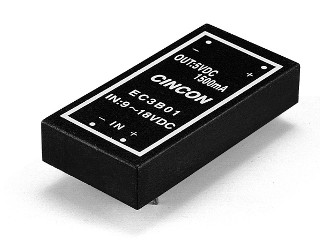

EC3B 7.5 WATT DC-DC CONVERTERS

FEATURES:

• 7.5W Isolated Output
• 2" x 1" Case
• Regulated Outputs
• Efficiency to 82%
• Pi Input Filter
• Continuous Short Circuit Protection

Availability

11 pcs on stock
NRND

Quantity

1 pcs Minimum order quantity
1 pcs Multiple
-/12/84 pcs Collective package

Net price / pcs

pcs +
