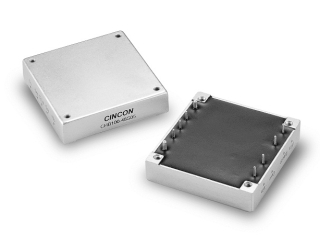

100W 15V/6.7A Isolated DC/DC Converter, 18-36Vin, n=88%, Viso=1500VDC, UL


	Index Ropla	CIN0386
	Manufacturer's part number	CHB100-24S15
	Manufacturer	Cincon
	Data sheet	chb100.pdf (124,08KB)

CHB100 SERIES 66 - 100 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT

FEATURES:

• 66 - 100W Isolated Output
• Efficiency to 89%
• 500KHz Switching Frequency
• 2 : 1 Input Range
• Regulated Outputs
• Continuous Short Circuit Protection
• Five-Sided Metal Case
• Half-Brick Size Meet Industrial Standard
• CE Mark Meets 2004/108/EC
• UL60950-1 Approval
• Without Tantalum Capacitor Inside (V2.X Only, with TC Label)

RoHS	cincon_rohs.pdf (333,97KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (400,51KB)
UL	ul_chb100.pdf (91,15KB)
CE	ce_chb100.pdf (31,68KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	1
Power	100W
Series	CHB100
Output Voltage 1	15V
Output Current 1	6.7A
Input Voltage	18V ~ 36V
Isolation Voltage	1500VDC
Efficiency	88%
Ripple/Noise	150mV p-p
Type	Isolated
Package/Case	HB
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	100°C
Packaging	Antistatic Foam

Collective package	-/12/24 pcs
Weight	95.000000 g
Weight of the collective package	-/1,140 g/2,280 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/12/24	pcs	Collective package
