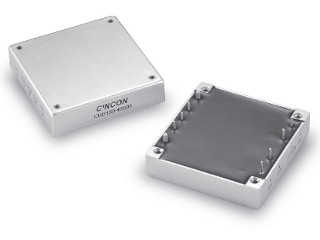

150W 15V/10A Isolated DC/DC Converter, 36-75Vin, n=89%, Viso=1500VDC, UL


	Index Ropla	CIN0408
	Manufacturer's part number	CHB150-48S15
	Manufacturer	Cincon
	Data sheet	chb150.pdf (120,82KB)

CHB150 SERIES 99 - 150 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT

FEATURES:

• 99 - 150W Isolated Output
• Efficiency to 89%
• 500KHz Switching Frequency
• 2 : 1 Input Range
• Regulated Outputs
• Continuous Short Circuit Protection
• Five-Sided Metal Case
• Half-Brick Size Meet Industrial Standard
• CE Mark Meets 2004/108/EC
• UL60950-1 Approval
• Without Tantalum Capacitor Inside (V2.X Only, with TC Label)

RoHS	cincon_rohs.pdf (333,97KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (400,51KB)
UL	ul_chb150.pdf (91,17KB)
CE	ce_chb150.pdf (31,68KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	1
Power	150W
Series	CHB150
Output Voltage 1	15V
Output Current 1	10A
Input Voltage	36V ~ 75V
Isolation Voltage	1500VDC
Efficiency	89%
Ripple/Noise	150mV p-p
Type	Isolated
Package/Case	HB
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	100°C
Packaging	Antistatic Foam

Collective package	-/12/24 pcs
Weight	100.000000 g
Weight of the collective package	-/1,200 g/2,400 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/12/24	pcs	Collective package
