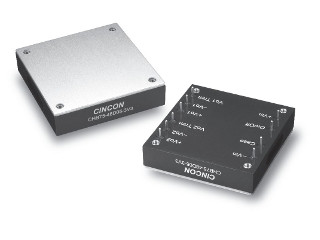

75W 5V/15A, 2.5V/15A Isolated DC/DC Converter, 36-75Vin, n=84%, Viso=1500VDC, UL


	Index Ropla	CIN1013
	Manufacturer's part number	CHB75-48D05-2V5
	Manufacturer	Cincon
	Data sheet	chb75d.pdf (222,91KB)

CHB75 SERIES 75 WATT WIDE INPUT DC-DC CONVERTERS DUAL OUTPUT

FEATURES:

• 75W Isolated Output
• Efficiency to 84%
• 400KHz Switching Frequency
• 2:1 Input Range
• Regulated Outputs
• Continuous Short Circuit Protection
• Half-Brick Size Meet Industrial Standard
• Total Power 75W with 15A Maximum Per Channel
• CE Mark Meets 2004/108/EC
• UL60950-1 Approval

RoHS	cincon_rohs.pdf (333,97KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (400,51KB)
UL	ul_chb75d.pdf (88,42KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	2
Power	75W
Series	CHB75D
Output Voltage 1	5.0V
Output Current 1	15A
Input Voltage	36V ~ 75V
Isolation Voltage	1500VDC
Output Voltage 2	2.5V
Output Current 2	15A
Efficiency	84%
Ripple/Noise	100mV p-p
Type	Isolated
Package/Case	HB
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	100°C
Packaging	Antistatic Foam

Collective package	-/12/24 pcs
Weight	108.000000 g
Weight of the collective package	-/1,296 g/2,592 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/12/24	pcs	Collective package

0	pcs	on stock
obsolete
