Ropla Elektronik Sp. z o.o. | Stock | Cincon - TRG30R050V-01E03-GY-BK - 20W 5V/4A Wall-Mount AC/DC Power Adapter; 5.5/2.1mm, 90-264Vin, n=83.69%, Viso=4242VDC, UL

20W 5V/4A Wall-Mount AC/DC Power Adapter; 5.5/2.1mm, 90-264Vin, n=83.69%, Viso=4242VDC, UL


	Index Ropla	CIN2264
	Manufacturer's part number	TRG30R050V-01E03-GY-BK
	Manufacturer	Cincon
	Data sheet	trg30rv.pdf (506,51KB)
	Data sheet	cable_and_dc_plug.pdf (107,99KB)

TRG30RV SERIES 30W SWITCHING ADAPTER

FEATURES:

• Universal Input Range 90~264VAC

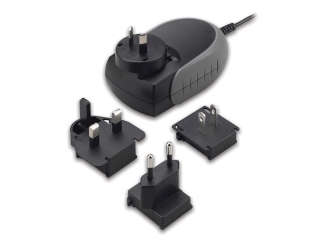

• Interchangeable AC Plugs: USA, Europe, UK, Australia
• Meets EN61204-3 Class B and CISPR/FCC Class B
• Continuous Short Circuit Protection
• Over Voltage Protection
• Meet CoC Tier 2 & DoE Level VI (Output Cable Length≦1800mm)
• No Load Power Consumption<75mW

RoHS	cincon_rohs.pdf (333,97KB) product compliant with the RoHS Directive
REACH	cincon_rohs.pdf (333,97KB)
UL	ul_trg30rv_60950-1.pdf (14,76KB)
CE	ce_trg30rv_60950-1.pdf (606,74KB)

Product group	Wall-Mount Power Supllies
Manufacturer	Cincon
Mounting Style	wall-mount
Industry	ITE/Industrial
Series	TRG30RV
Output Power	20W
Input Voltage	90V ~ 264Vac
Output Voltage	5.0V
Output Current	4.0A
Ripple/Noise	50mV p-p
Voltage Accuracy	2%
Efficiency	83.69%
Input Current	800mA max.
Voltage Isolation	4242VDC
DC Plug Type	5.5/2.1 mm
Connector Type	right angle
DC Plug Polarity (+)	inner
DC Output Lead Length	180cm
Efficiency Standard	Level VI
Interchangeable Plug	yes
Attached AC plug type	Europe
Operating Altitude	5000m
Packaging	Inner Box
Tₘᵢₙ	-20°C
Tₘₐₓ	60°C

Collective package	1/1/50 pcs
Weight	300.000000 g
Weight of the collective package	300 g/300 g/15,000 g
Customs number	94059900

1	pcs	Minimum order quantity
1	pcs	Multiple
1/1/50	pcs	Collective package
