Ropla Elektronik Sp. z o.o. | Stock | Dongil Electronic - DS2EYE472MBS4L2 - Safety Ceramic capacitor 4.7nF-250Vac Y5U 20% X1/Y2 P7.5 L=3.2mm

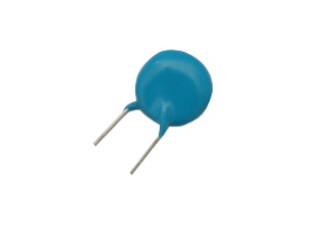

Safety Ceramic capacitor 4.7nF-250Vac Y5U 20% X1/Y2 P7.5 L=3.2mm


	Index Ropla	DGL0015
	Manufacturer's part number	DS2EYE472MBS4L2
	Ordering code	DS2EYE472MBSC04
	Manufacturer	Dongil Electronic
	Data sheet	ds.pdf (1,12MB)

Safety Standard Recognized Ceramic Capacitors DS Series (Class X1, Y2)

FEATURES
1. Operating temperature range guaranteed up to 125 degrees (UL: 85 deg.)
2. Dielectric strenght: DA AC=2,600V (In case of Lead spacing F=5mm AC=2,000V max)
3. Class X1, Y2 capacitors which are certified by UL, CSA, ENEC/FI, EK, CQC
4. Coated with flame-retarant epoxy resin (confirmed to UL94V-0 standard).
5. Taping available for automatic insertion

RoHS	dongil_rohs.pdf (49,69KB) product compliant with the RoHS Directive
REACH	dongil_reach_ce.pdf (508,33KB)
UL	dongil_ul.pdf (303,52KB)
CSA	dongil_csa.pdf (190,26KB)
ENEC	dongil_enec.pdf (729,77KB)

DGL0016

Safety Ceramic capacitor 4.7nF-250Vac Y5U 20% X1/Y2 P10 L=25mm

pcs

on stock

Product group	Ceramic Capacitors
Manufacturer	Dongil Electronic
Type	X1/Y2
Dielectric	Y5U
Mounting Style	THT
Series	DS
Capacitance	4.7nF
Rated Voltage	250VAC
Tolerance	20%
Package/Case	D=14mm
Lead Spacing	7.5mm
Temperature Characteristic	+22% ~ -56%
Tₘᵢₙ	-25°C
Tₘₐₓ	125°C
Packaging	Bag

Collective package	500/2,000/6,000 pcs
Customs number	85322300

2,000	pcs	Minimum order quantity
500	pcs	Multiple
500/2,000/6,000	pcs	Collective package
