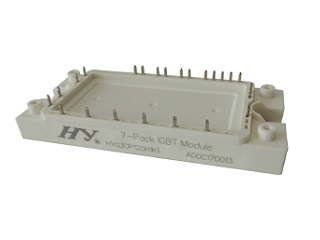

IGBT Module 1200V/30A


	Index Ropla	HYE0653
	Manufacturer's part number	HYG30P120H1K1
	Manufacturer	HY Electronic
	Data sheet	hyg30p120h1k1.pdf (1,37MB)

Bipolar Transistor with Isolated Gate (IGBT). Semiconductor power element used in power electronics converters with powers up to several hundred kilowatts.

• voltage controlled
• low loss of conduction and switching
• low saturation voltage (Vce sat)
• temperature sensor

Application
• motor drives
• UPS
• AC and DC drive amplifier

RoHS	hy_rohs.pdf (119,55KB) product compliant with the RoHS Directive
REACH	hy_reach.pdf (579,26KB)
UL	hy_ul.pdf (342,82KB)

Product group	IGBT modules
Manufacturer	HY Electronic
Mounting Style	THT
Collector-Emitter Voltage V_CES	1200V
Collector Current I_C	30A
Power Dissipation P_D	200W
Collector Emitter Saturation Voltage V_CE(sat)	2.1V @25A
Input Capacitance C_iss	2.6nF
Tₘᵢₙ	-40°C
Tₘₐₓ	175°C
Packaging	Inner Box

Collective package	-/8/- pcs
Customs number	85411000

8	pcs	Minimum order quantity
8	pcs	Multiple
-/8/-	pcs	Collective package

0	pcs	on stock
by special order
