Index Ropla MMC0010
Manufacturer's part number MMG200DR120UZK
Manufacturer MacMic Corporation
Data sheet /mmc/mmg200dr120uzk.pdf mmg200dr120uzk.pdf (446,30KB)

Product group IGBT modules
Manufacturer MacMic Corporation
Mounting Style screw
Collector-Emitter Voltage VCES 1200V @25°C
Collector Current IC 300A @25°C
Power Dissipation PD 1400W
Collector Emitter Saturation Voltage VCE(sat) 1.8V @200A
Input Capacitance Ciss 14.9nF
Tₘᵢₙ -40°C
Tₘₐₓ 150°C
Packaging Inner Box
Collective package -/6/30 pcs
Weight 285.000000 g
Weight of the collective package -/1,710 g/8,550 g
Customs number 85411000

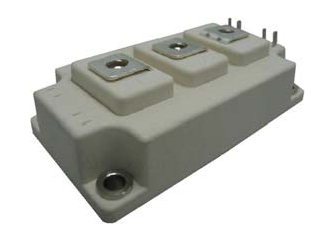

IGBT Module:

FEATURES
· Ultra Low Loss
· High Ruggedness
· High Short Circuit Capability
· Positive Temperature Coefficient
· With Fast Free-Wheeling Diodes

APPLICATIONS
· Invertor
· Convertor
· Welder
· SMPS and UPS
· Induction Heating
1 pcs on stock
by special order
when stock is gone MOQ = 3 pcs
multiple = 6 pcs

1 pcs Minimum order quantity
1 pcs Multiple
-/6/30 pcs Collective package

pcs +  387.4517000 PLN
