	Index Ropla	PDC5950

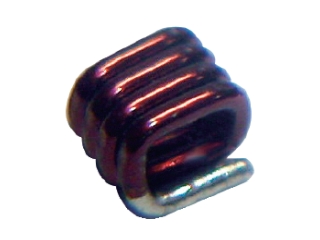

	Manufacturer's part number	LSQ0806A-12NG
	Manufacturer	PDC
	Data sheet	lsq0806a-xxxx.pdf (270,70KB)

Product group	Coils
Manufacturer	PDC
Product Type	Coil
Series	LSQ0806A
Technology	Wire Wound
Protection style	no
Core Material	air
Inductance	12.3nH
Tolerance	2%
Maximum DC Current I_RMS	2.90A
Maximum DC Resistance R_DC	8.00mΩ
Test Frequency f_L	400MHz
Q_min	90
Quality Test Frequency f_Q	400MHz
Self Resonant Frequency SRF_min	4.80GHz
Product category	Air Wound Coil
Package/Case	2.591x1.829x1.397
Mounting Style	SMD
Packaging	Reel 7"
Tₘᵢₙ	-25°C
Tₘₐₓ	125°C

Collective package	2,000/8,000/48,000 pcs
Customs number	85041020

RoHS	pdc_rohs_coil.pdf (414,91KB) product compliant with the RoHS Directive
REACH	pdc_reach_coil.pdf (0,99MB)

2,000	pcs	Minimum order quantity
2,000	pcs	Multiple
2,000/8,000/48,000	pcs	Collective package
