	Index Ropla	PDC5970

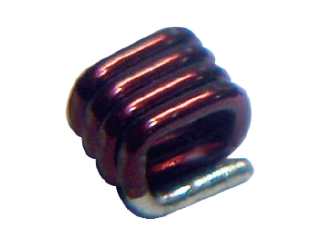

	Manufacturer's part number	LSQ0807A-22NG
	Manufacturer	PDC
	Data sheet	lsq0807a-xxxx.pdf (270,53KB)

Product group	Coils
Manufacturer	PDC
Product Type	Coil
Series	LSQ0807A
Technology	Wire Wound
Protection style	no
Core Material	air
Inductance	22nH
Tolerance	2%
Maximum DC Current I_RMS	2.70A
Maximum DC Resistance R_DC	10.0mΩ
Test Frequency f_L	400MHz
Q_min	100
Quality Test Frequency f_Q	400MHz
Self Resonant Frequency SRF_min	3.50GHz
Product category	Air Wound Coil
Package/Case	2.591x1.829x1.524
Mounting Style	SMD
Packaging	Reel 7"
Tₘᵢₙ	-25°C
Tₘₐₓ	125°C

Collective package	2,000/8,000/48,000 pcs
Customs number	85041020

RoHS	pdc_rohs_coil.pdf (414,91KB) product compliant with the RoHS Directive
REACH	pdc_reach_coil.pdf (5,76MB)

2,000	pcs	Minimum order quantity
2,000	pcs	Multiple
2,000/8,000/48,000	pcs	Collective package
