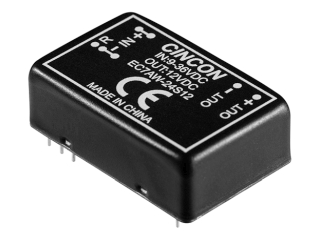

Ropla Elektronik Sp. z o.o. | Stock | Cincon - EC7AW-48S15 - 10W 15V/666mA Isolated DC/DC Converter, 18-74Vin, n=89%, Viso=3000VDC

10W 15V/666mA Isolated DC/DC Converter, 18-74Vin, n=89%, Viso=3000VDC


	Index Ropla	CIN2930
	Manufacturer's part number	EC7AW-48S15
	Manufacturer	Cincon
	Data sheet	ec7aw.pdf (524,85KB)

CFB750-300S-CMFD SERIES 750 WATT 2:1 INPUT ISOLATED DC-DC CONVERTERS

FEATURES:

• Efficiency up to 89%
• Fixed Switching Frequency
• Regulated Outputs
• Remote On/Off
• Low No Load Power Consumption
• Fully Protected (OCP/OVP/UVLO)
• 3000Vdc I/O Isolation
• No Tantalum Capacitor Inside
• DIP-24 Metal Package
• Meets Industrial Standard 1.25”x0.80”x0.40”
• Safety Meets IEC/EN/UL 62368-1
• EMI Meets EN55032 Class A Without External Component

RoHS	cincon_rohs.pdf (333,97KB) product compliant with the RoHS Directive
REACH	cincon_reach.pdf (400,51KB)
CE	ce_ec7aw.pdf (20,42KB)

Product group	DC/DC Converters
Manufacturer	Cincon
Number of Outputs	1
Power	10W
Series	EC7AW
Output Voltage 1	15V
Output Current 1	666mA
Input Voltage	18V ~ 74V
Isolation Voltage	3000VDC
Efficiency	89%
Ripple/Noise	150mV p-p
Type	Isolated
Package/Case	A (metal)
Mounting Style	THT
Remote On/Off Logic	positive
Tₘᵢₙ	-40°C
Tₘₐₓ	105°C
Packaging	Tube

Collective package	-/10/200 pcs
Weight	18.400000 g
Weight of the collective package	-/184 g/3,680 g
Customs number	85423990

1	pcs	Minimum order quantity
1	pcs	Multiple
-/10/200	pcs	Collective package
